Security Openvas的安装和使用 同nessus Awvs

refer to:

（看这个就可以了，其他的千万别看）https://greenbone.github.io/docs/latest/22.4/container/index.html

官网：https://github.com/greenbone/

（别看了）https://www.geeksforgeeks.org/installing-openvas-on-kali-linux/

（别看了）https://www.ceos3c.com/security/install-openvas-kali-linux/

openvas 是一款漏洞扫描软件，现在是收费的。 有社区版。 据说扫描很快，扫描的规则有5000多个。是nessus的一个分支.(fork)

免费版叫做 greenbone openvas

最新的名字叫做 gvm  greenbone vulnerability manager

gvmd:  greenbone vulnerability manager database 数据库后端

总结：

1. 必须用docker安装

2. 使用挺简单的。

3. sniper1 仅支持openvas <7, 而目前(2023-08-19) 的最新版本是22

安装

直接用docker-compose:  参考 https://greenbone.github.io/docs/latest/22.4/container/index.html

docker-compose.yml 文件内容：

services:
  vulnerability-tests:
    image: greenbone/vulnerability-tests
    environment:
      STORAGE_PATH: /var/lib/openvas/22.04/vt-data/nasl
    volumes:
      - vt_data_vol:/mnt

  notus-data:
    image: greenbone/notus-data
    volumes:
      - notus_data_vol:/mnt

  scap-data:
    image: greenbone/scap-data
    volumes:
      - scap_data_vol:/mnt

  cert-bund-data:
    image: greenbone/cert-bund-data
    volumes:
      - cert_data_vol:/mnt

  dfn-cert-data:
    image: greenbone/dfn-cert-data
    volumes:
      - cert_data_vol:/mnt
    depends_on:
      - cert-bund-data

  data-objects:
    image: greenbone/data-objects
    volumes:
      - data_objects_vol:/mnt

  report-formats:
    image: greenbone/report-formats
    volumes:
      - data_objects_vol:/mnt
    depends_on:
      - data-objects

  gpg-data:
    image: greenbone/gpg-data
    volumes:
      - gpg_data_vol:/mnt

  redis-server:
    image: greenbone/redis-server
    restart: on-failure
    volumes:
      - redis_socket_vol:/run/redis/

  pg-gvm:
    image: greenbone/pg-gvm:stable
    restart: on-failure
    volumes:
      - psql_data_vol:/var/lib/postgresql
      - psql_socket_vol:/var/run/postgresql

  gvmd:
    image: greenbone/gvmd:stable
    restart: on-failure
    volumes:
      - gvmd_data_vol:/var/lib/gvm
      - scap_data_vol:/var/lib/gvm/scap-data/
      - cert_data_vol:/var/lib/gvm/cert-data
      - data_objects_vol:/var/lib/gvm/data-objects/gvmd
      - vt_data_vol:/var/lib/openvas/plugins
      - psql_data_vol:/var/lib/postgresql
      - gvmd_socket_vol:/run/gvmd
      - ospd_openvas_socket_vol:/run/ospd
      - psql_socket_vol:/var/run/postgresql
    depends_on:
      pg-gvm:
        condition: service_started
      scap-data:
        condition: service_completed_successfully
      cert-bund-data:
        condition: service_completed_successfully
      dfn-cert-data:
        condition: service_completed_successfully
      data-objects:
        condition: service_completed_successfully
      report-formats:
        condition: service_completed_successfully

  gsa:
    image: greenbone/gsa:stable
    restart: on-failure
    ports:
      - 9392:80
    volumes:
      - gvmd_socket_vol:/run/gvmd
    depends_on:
      - gvmd

  ospd-openvas:
    image: greenbone/ospd-openvas:stable
    restart: on-failure
    init: true
    hostname: ospd-openvas.local
    cap_add:
      - NET_ADMIN # for capturing packages in promiscuous mode
      - NET_RAW # for raw sockets e.g. used for the boreas alive detection
    security_opt:
      - seccomp=unconfined
      - apparmor=unconfined
    command:
      [
        "ospd-openvas",
        "-f",
        "--config",
        "/etc/gvm/ospd-openvas.conf",
        "--mqtt-broker-address",
        "mqtt-broker",
        "--notus-feed-dir",
        "/var/lib/notus/advisories",
        "-m",
        "666"
      ]
    volumes:
      - gpg_data_vol:/etc/openvas/gnupg
      - vt_data_vol:/var/lib/openvas/plugins
      - notus_data_vol:/var/lib/notus
      - ospd_openvas_socket_vol:/run/ospd
      - redis_socket_vol:/run/redis/
    depends_on:
      redis-server:
        condition: service_started
      gpg-data:
        condition: service_completed_successfully
      vulnerability-tests:
        condition: service_completed_successfully

  mqtt-broker:
    restart: on-failure
    image: greenbone/mqtt-broker
    ports:
      - 1883:1883
    networks:
      default:
        aliases:
          - mqtt-broker
          - broker

  notus-scanner:
    restart: on-failure
    image: greenbone/notus-scanner:stable
    volumes:
      - notus_data_vol:/var/lib/notus
      - gpg_data_vol:/etc/openvas/gnupg
    environment:
      NOTUS_SCANNER_MQTT_BROKER_ADDRESS: mqtt-broker
      NOTUS_SCANNER_PRODUCTS_DIRECTORY: /var/lib/notus/products
    depends_on:
      - mqtt-broker
      - gpg-data
      - vulnerability-tests

  gvm-tools:
    image: greenbone/gvm-tools
    volumes:
      - gvmd_socket_vol:/run/gvmd
      - ospd_openvas_socket_vol:/run/ospd
    depends_on:
      - gvmd
      - ospd-openvas

volumes:
  gpg_data_vol:
  scap_data_vol:
  cert_data_vol:
  data_objects_vol:
  gvmd_data_vol:
  psql_data_vol:
  vt_data_vol:
  notus_data_vol:
  psql_socket_vol:
  gvmd_socket_vol:
  ospd_openvas_socket_vol:
  redis_socket_vol:

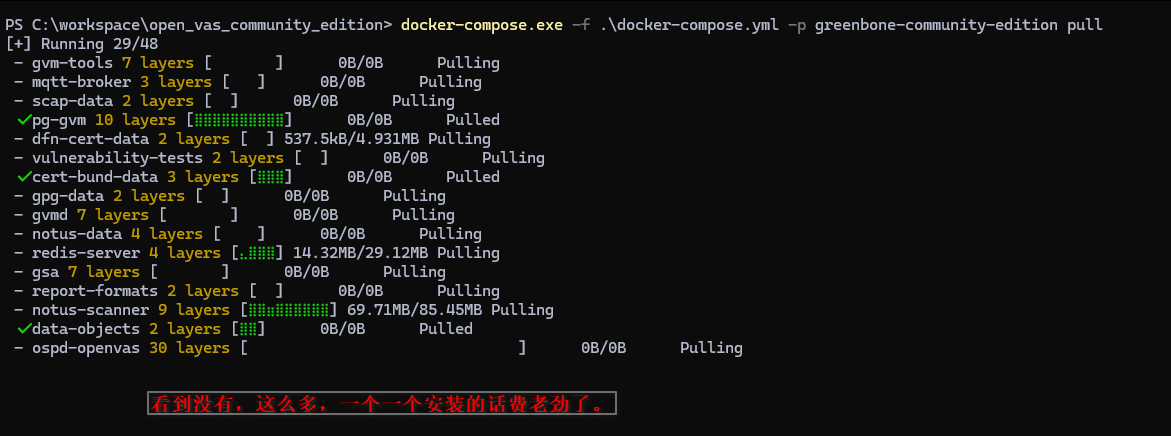

docker-compose.exe -f .\docker-compose.yml -p greenbone-community-edition pull

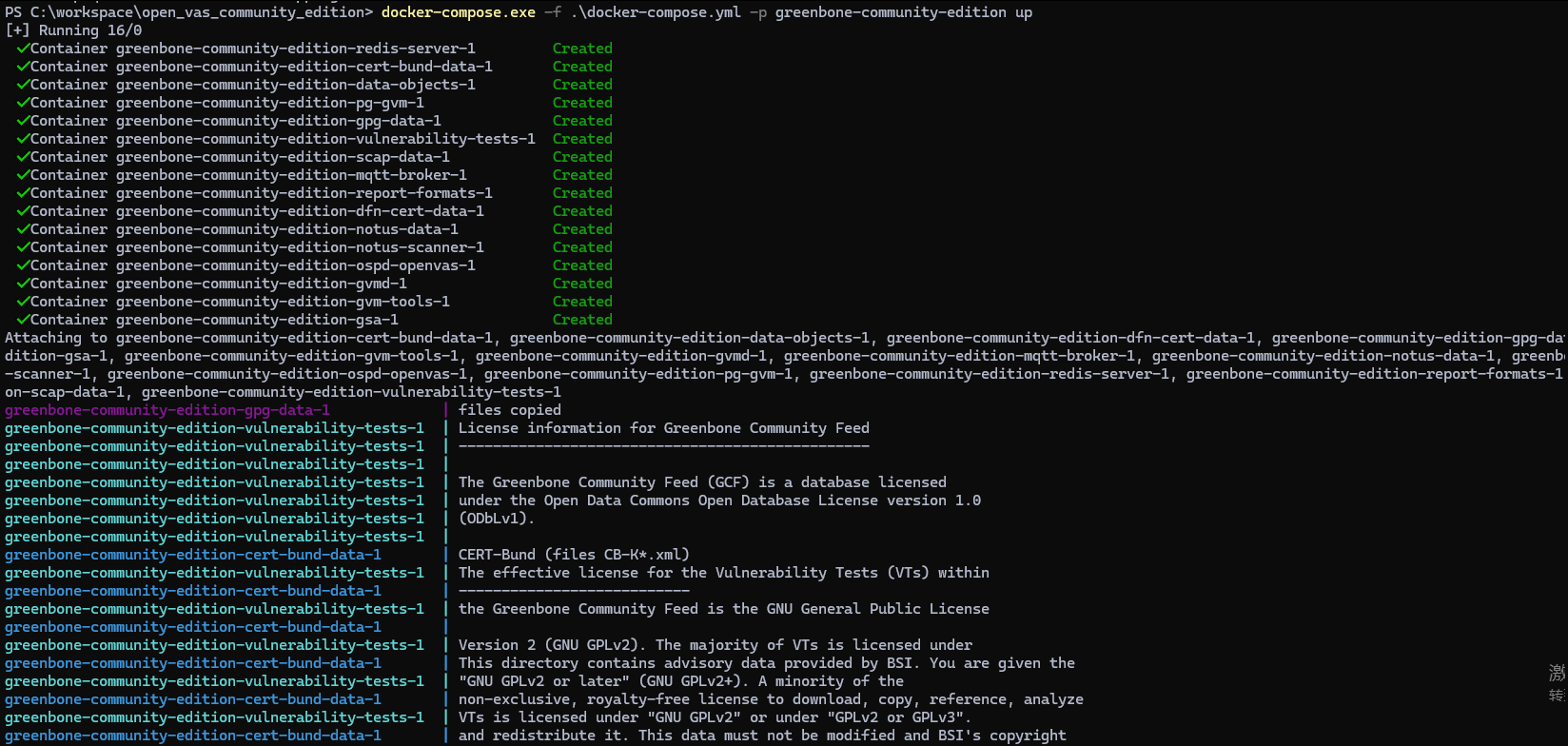

docker pull好了，就运行：

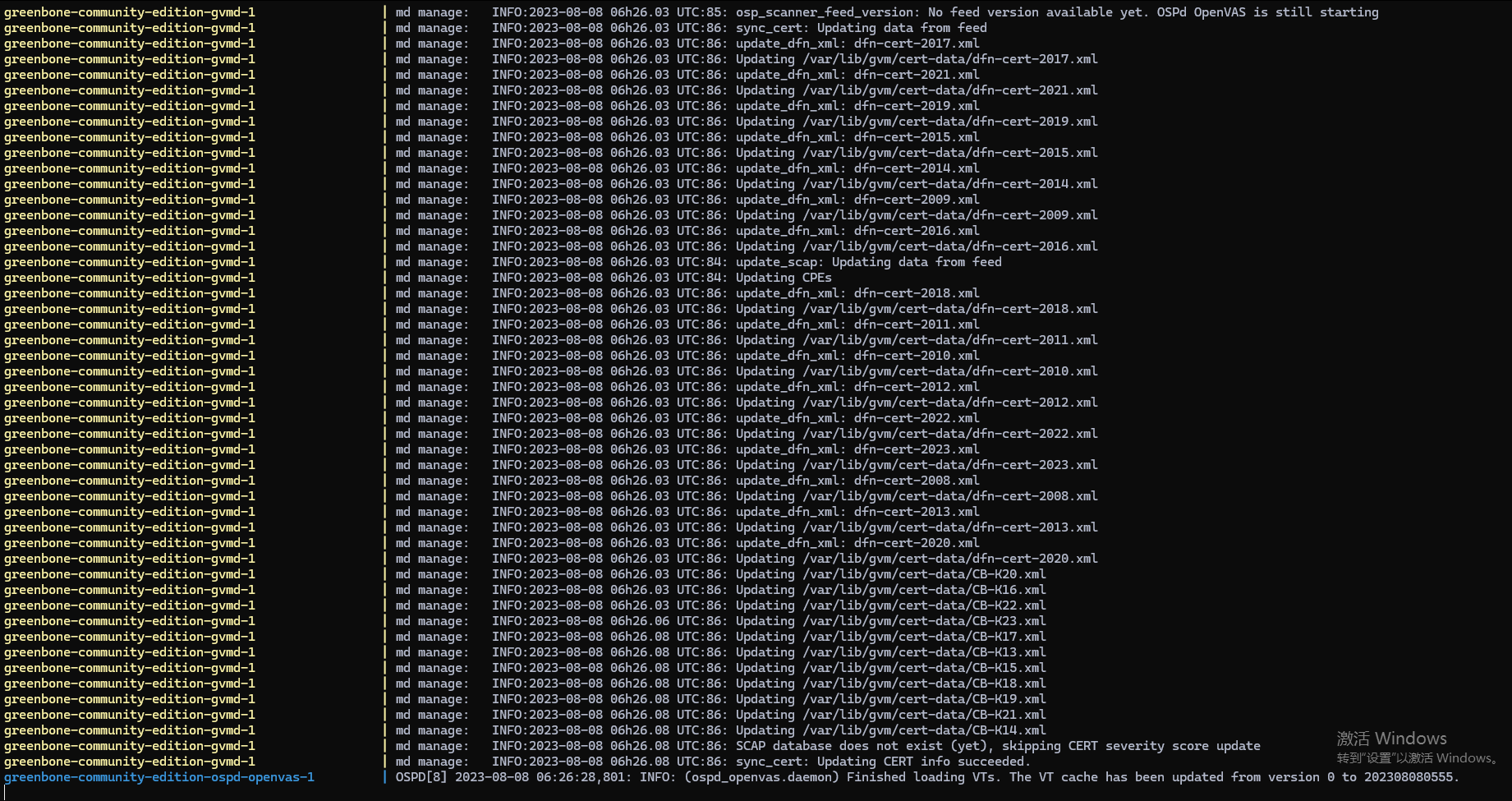

看到上面的图片，就表示程序运行起来了。

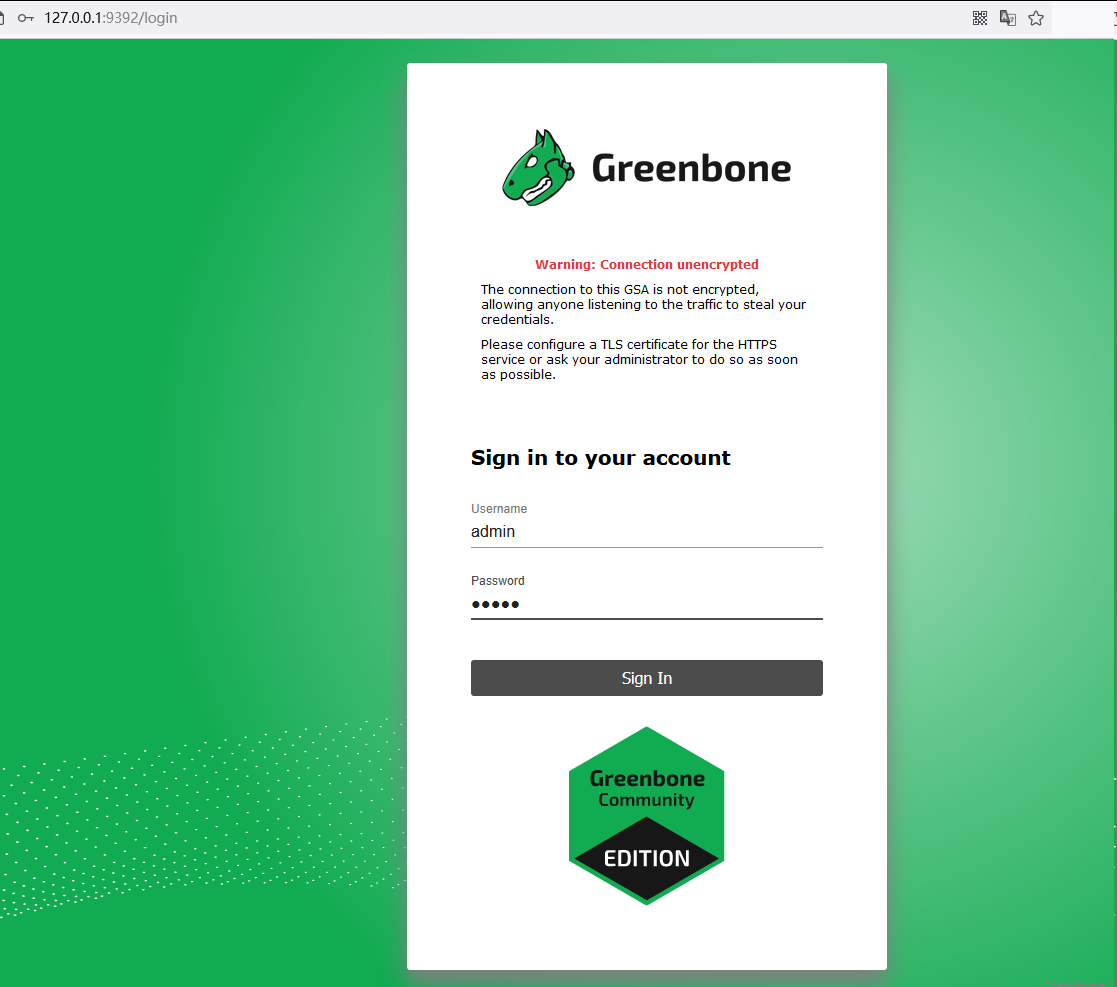

打开
http://127.0.0.1:9392

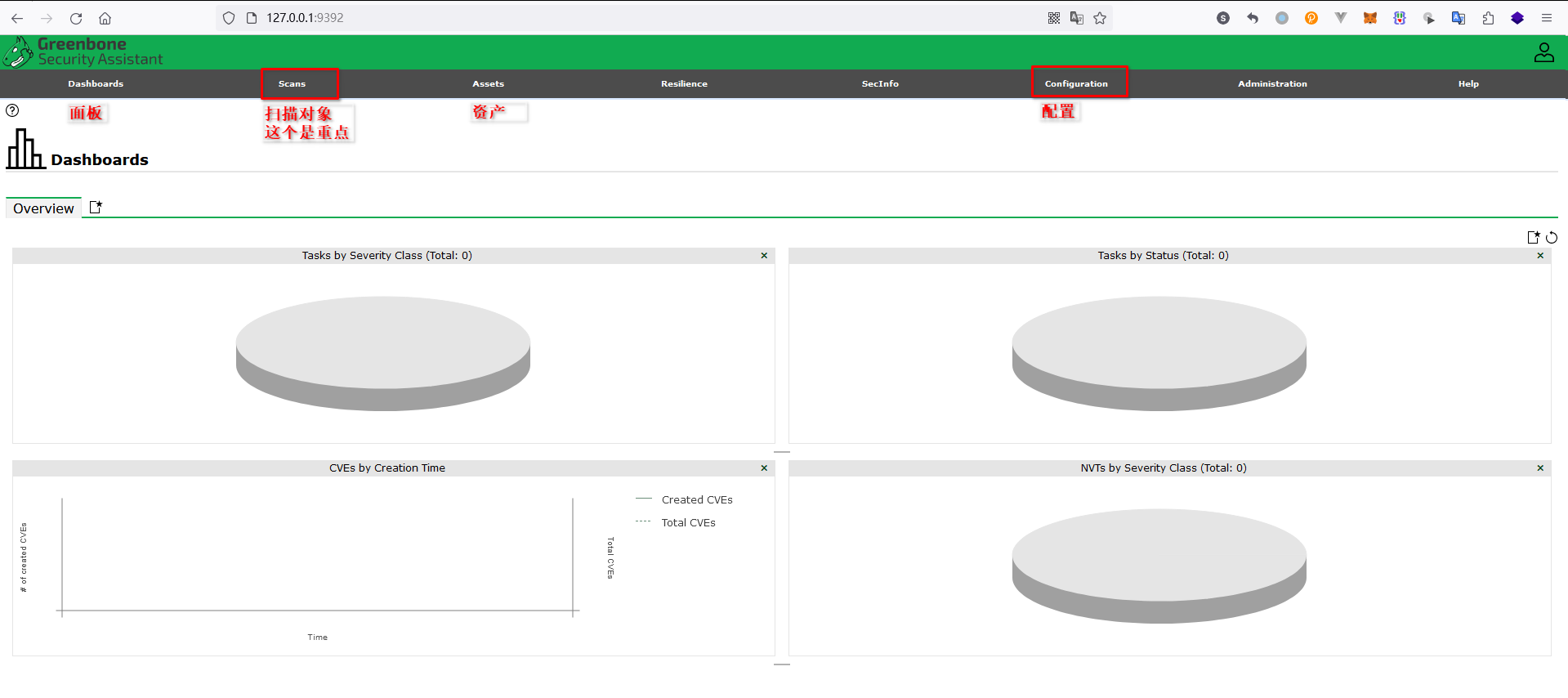

登陆后这样：

使用：

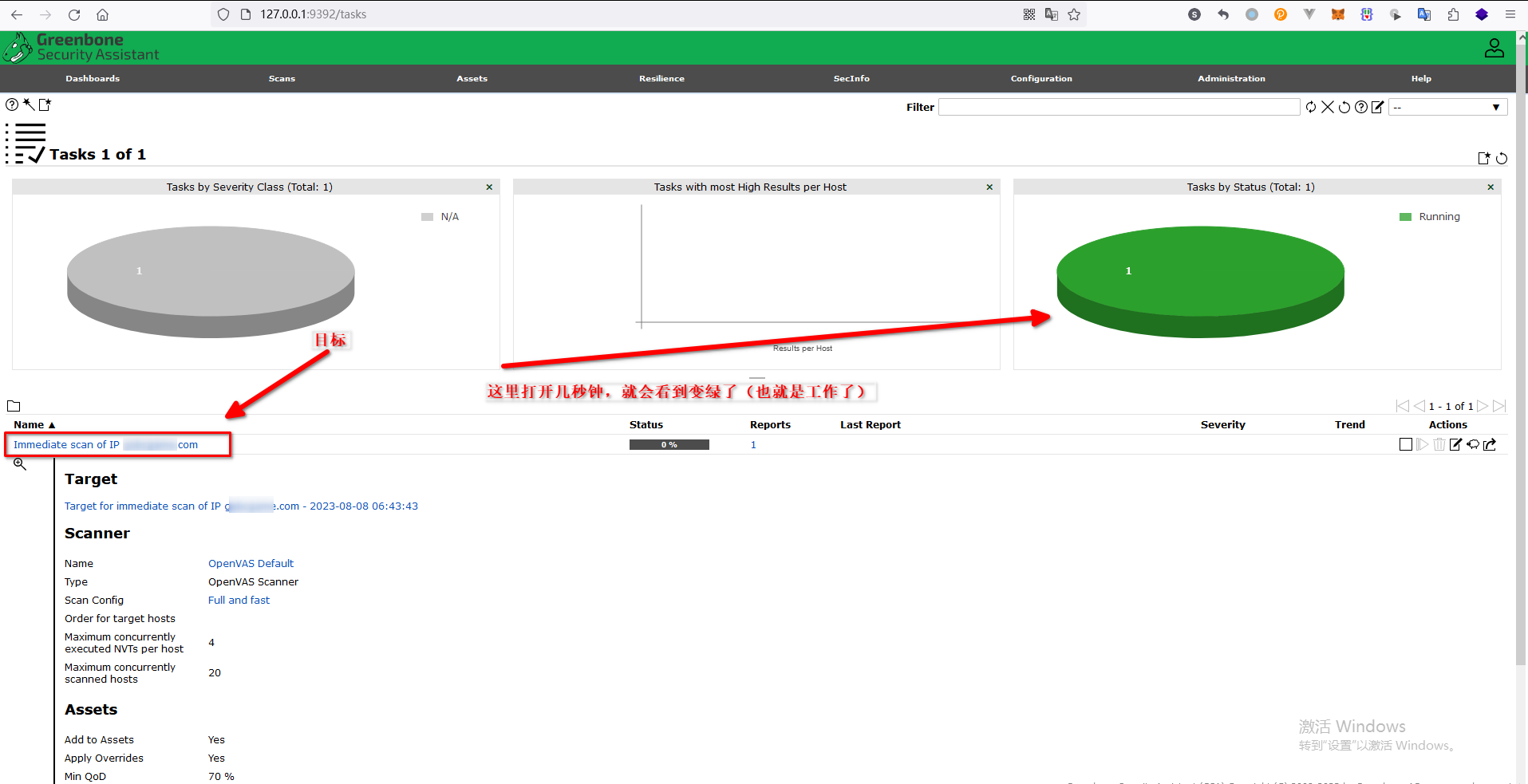

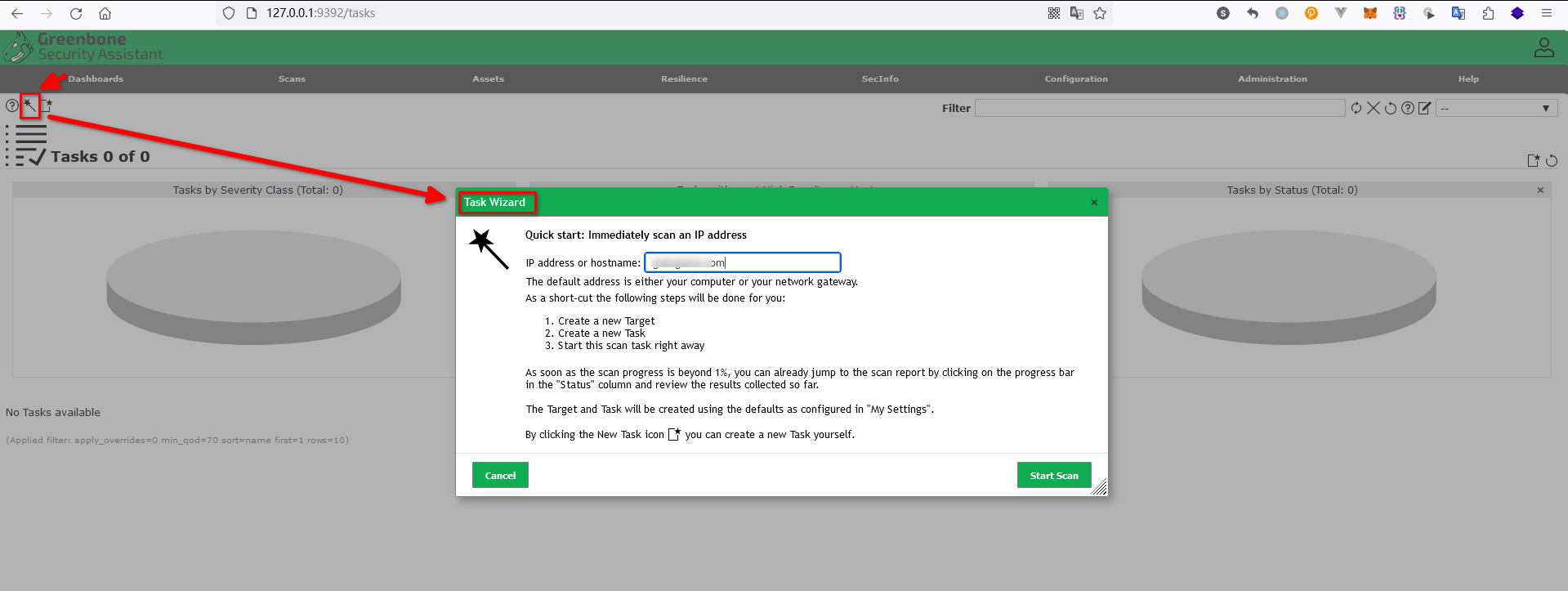

可以使用wizard:

（下面这几个太啰嗦了，是最开始尝试的时候弄的，可以不用看了）

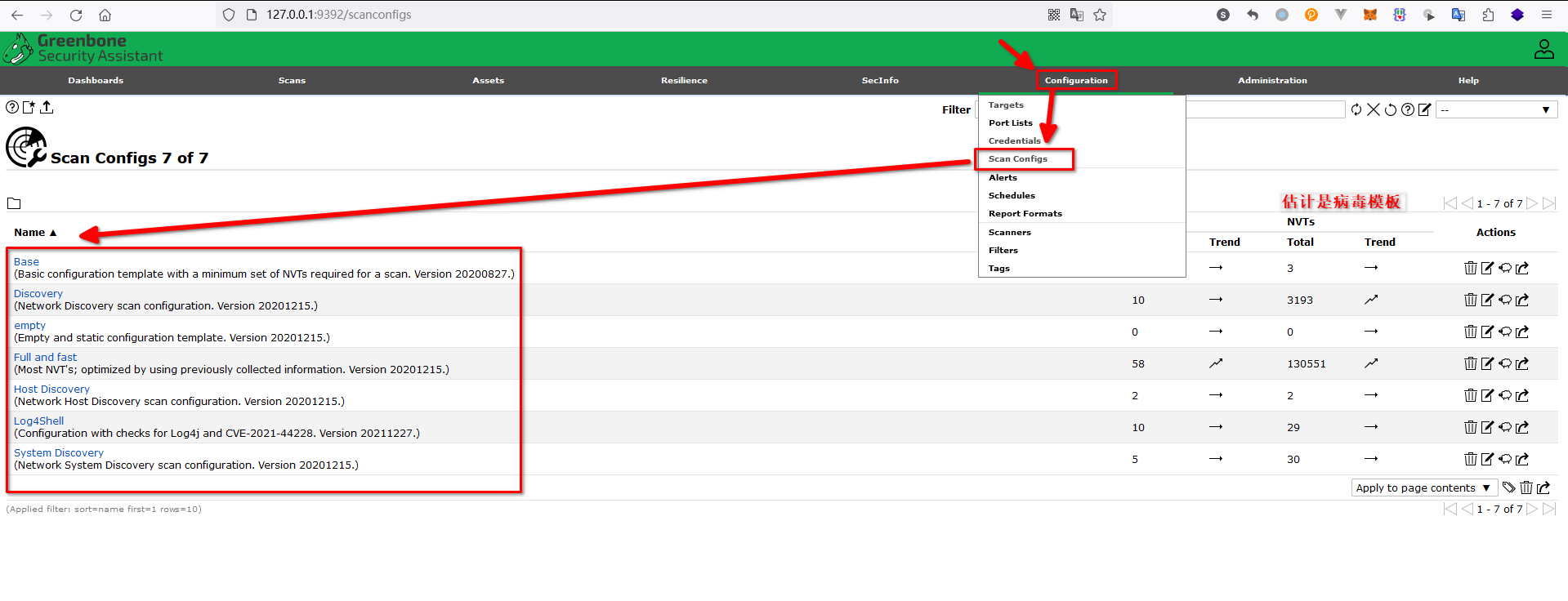

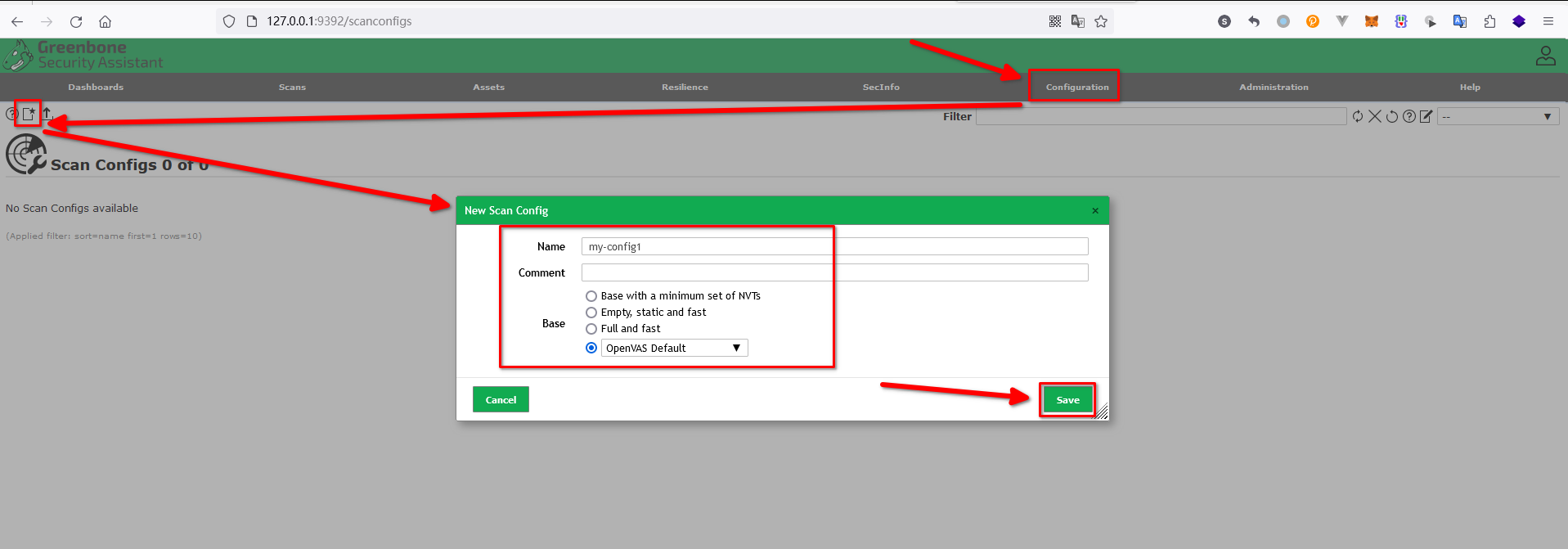

需要先增加 scan config:   config -> scan config -> 看一下里面有没有东西。没有的话多点一点。

这里似乎要等一等，第一次打开的是上面的情况，是不对的。

在上面页面点击了提交，页面报错，然后刷新，就看到下图了：

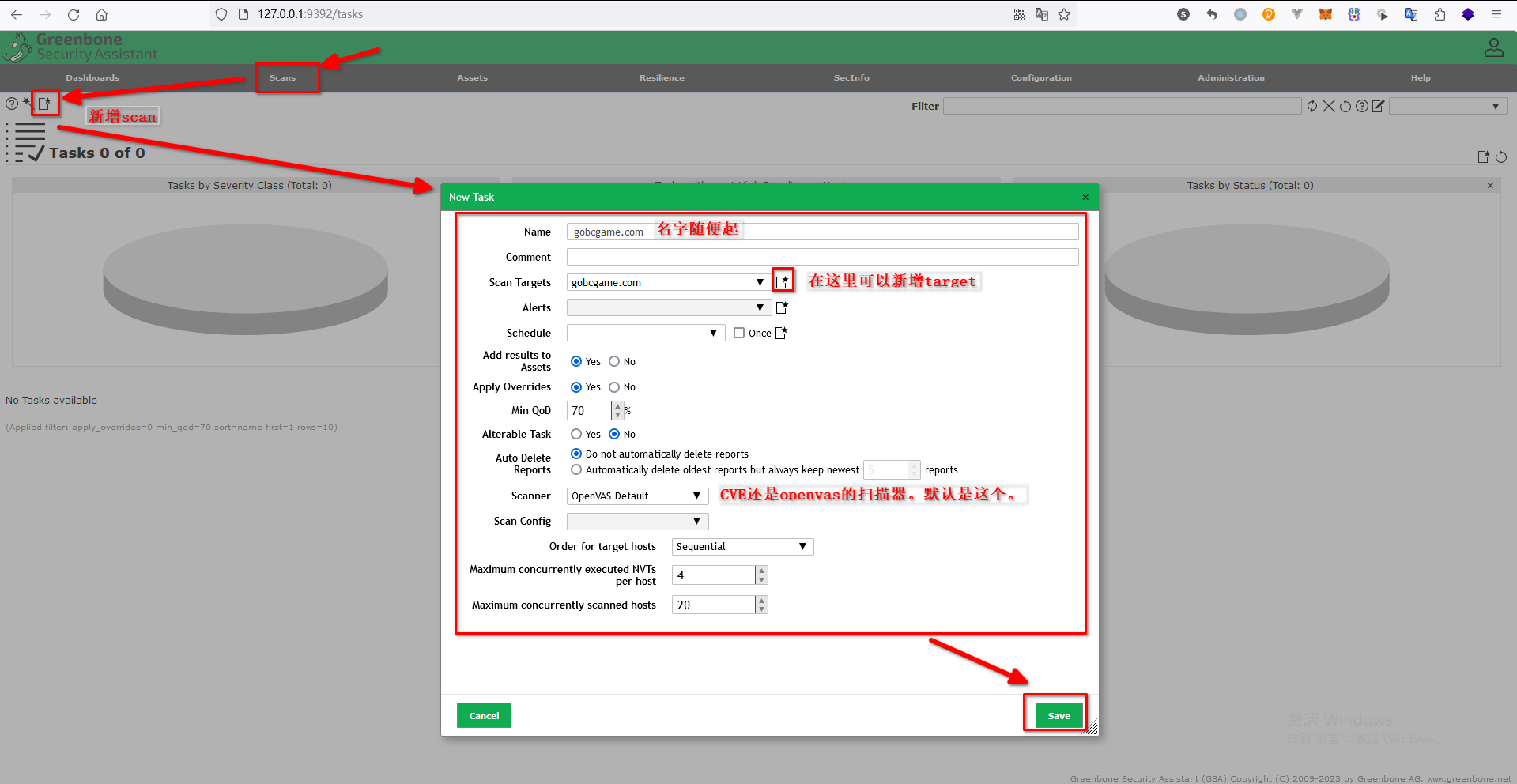

然后scans -> new scan:

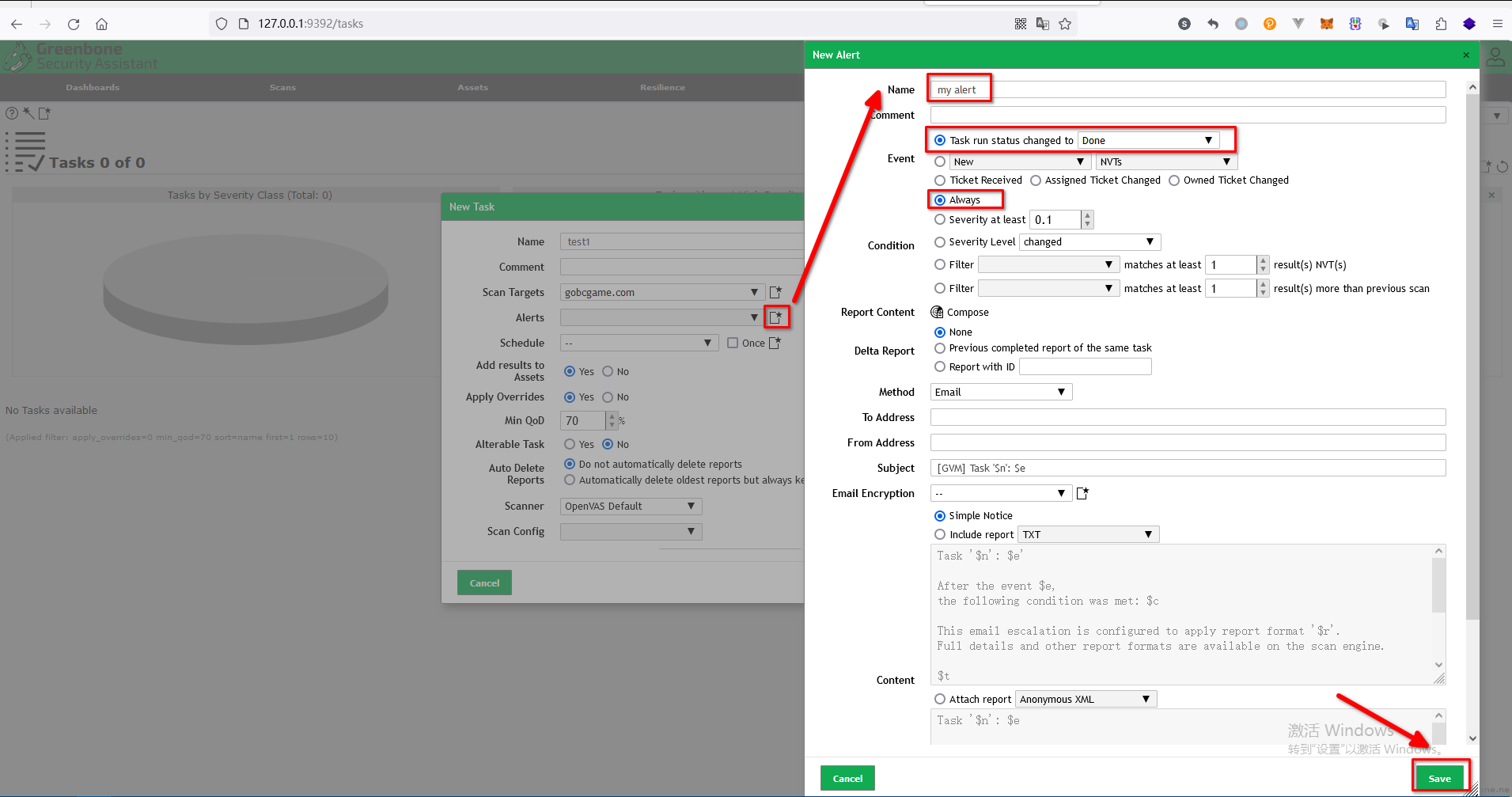

新增alert:

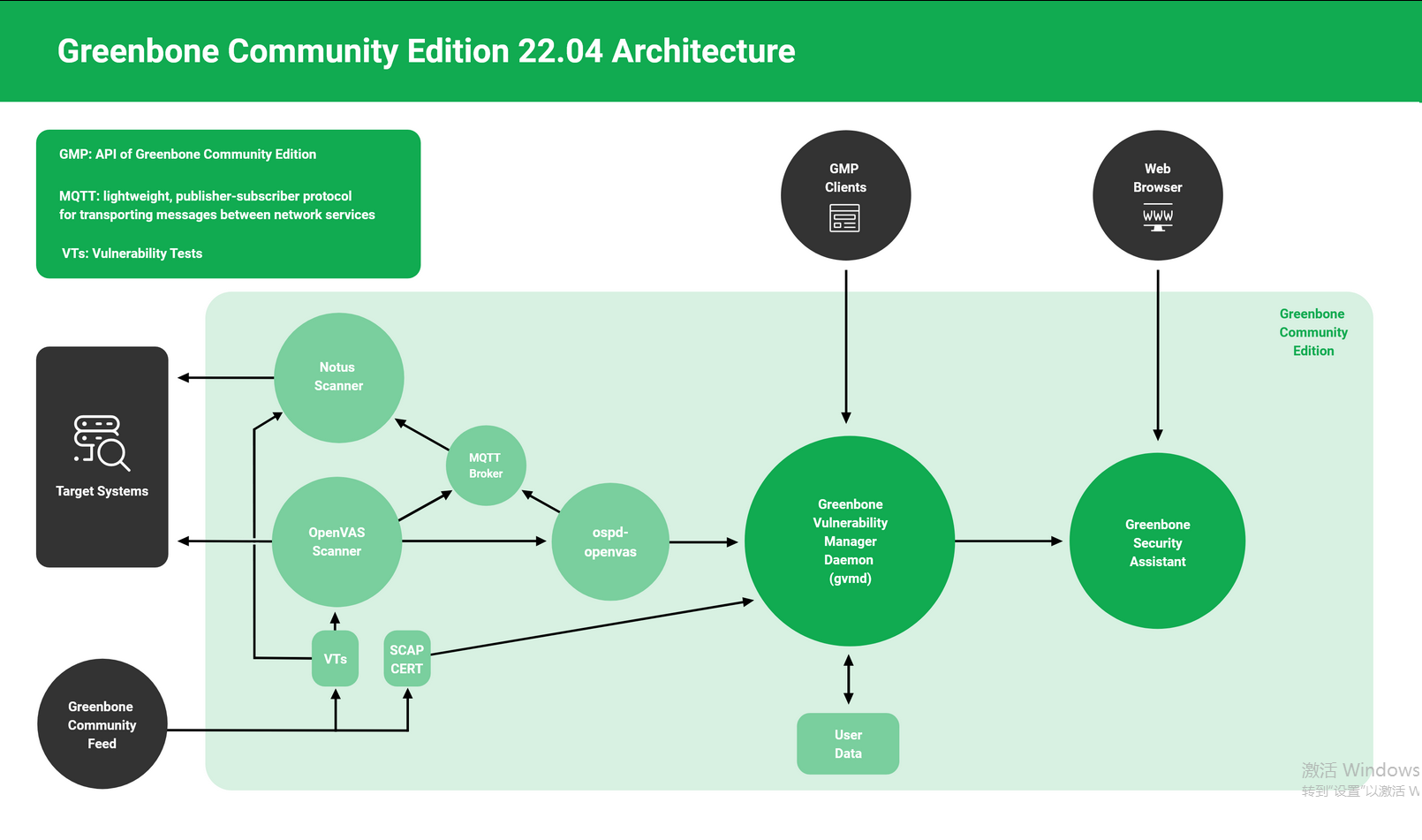

架构图 （可以参考理解）

以下的都不要看了

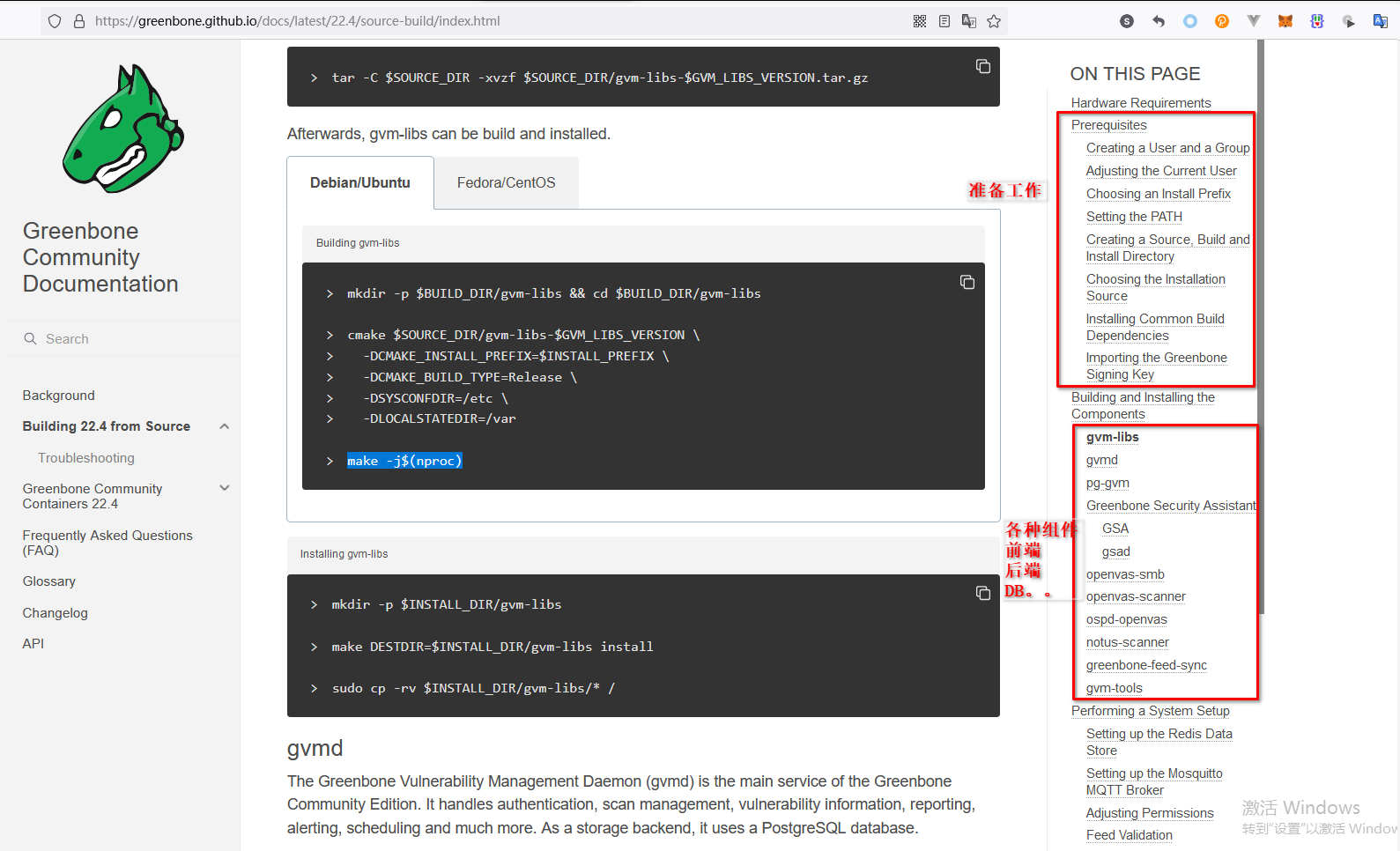

安装 （好吧，问题卡在了这里。建议不要自行编译了，直接使用docker )

参考：
https://greenbone.github.io/docs/latest/22.4/source-build/index.html

2015 sudo useradd -r -M -U -G sudo -s /usr/sbin/nologin gvm
2016 sudo usermod -aG gvm $USER
2017 su $USER
2018 echo $USER
2019 export INSTALL_PREFIX=/usr/local
2020 export PATH=$PATH:$INSTALL_PREFIX/sbin
2021 export SOURCE_DIR=$HOME/source
2022 mkdir -p $SOURCE_DIR
2023 echo $HOME
2024 export BUILD_DIR=$HOME/build
2025 mkdir -p $BUILD_DIR
2026 export INSTALL_DIR=$HOME/install
2027 mkdir -p $INSTALL_DIR
2028 sudo apt install --no-install-recommends --assume-yes build-essential curl cmake pkg-config python3 python3-pip gnupg
2029 curl -f -L https://www.greenbone.net/GBCommunitySigningKey.asc -o /tmp/GBCommunitySigningKey.asc
2030 gpg --import /tmp/GBCommunitySigningKey.asc
2031 echo "8AE4BE429B60A59B311C2E739823FAA60ED1E580:6:" | gpg --import-ownertrust
2032 export GVM_LIBS_VERSION=22.6.3
2033 sudo apt install -y libglib2.0-dev libgpgme-dev libgnutls28-dev uuid-dev libssh-gcrypt-dev libhiredis-dev libxml2-dev libpcap-dev libnet1-dev

如果你的ubuntu 是22， 那么就 apt install libpaho-mqtt-dev

如果你的ubuntu是20， （不是22），那么就需要根据这个文章来安装 libpaho-mqtt-dev
https://siwei.me/blog/posts/ubuntu-ubuntu-20-libpaho-mqtt-dev

继续安装：( gvm libs)

sudo apt install -y \
libldap2-dev \
libradcli-dev

curl -f -L https://github.com/greenbone/gvm-libs/archive/refs/tags/v$GVM_LIBS_VERSION.tar.gz -o $SOURCE_DIR/gvm-libs-$GVM_LIBS_VERSION.tar.gz
curl -f -L https://github.com/greenbone/gvm-libs/releases/download/v$GVM_LIBS_VERSION/gvm-libs-v$GVM_LIBS_VERSION.tar.gz.asc -o $SOURCE_DIR/gvm-libs-$GVM_LIBS_VERSION.tar.gz.asc

验证刚才下载的文件：

gpg --verify $SOURCE_DIR/gvm-libs-$GVM_LIBS_VERSION.tar.gz.asc $SOURCE_DIR/gvm-libs-$GVM_LIBS_VERSION.tar.gz

tar -C $SOURCE_DIR -xvzf $SOURCE_DIR/gvm-libs-$GVM_LIBS_VERSION.tar.gz

安装 gvm libs:

tar -C $SOURCE_DIR -xvzf $SOURCE_DIR/gvm-libs-$GVM_LIBS_VERSION.tar.gz

（失败了，由于没有安装成功 mqtt 那个lib )
